EPW End-of-line Pressure Switches

EPW End-of-line Pressure Switches

EPW end-of-line pressure switches are key components in a dual-line lubrication system Designed to monitor the system, these switches detect the pressure at the end of the respective main line and start the change-over procedure. If the pressure at the end of the line is not reached within a specific period of time, a fault signal will be generated at the electronic control unit.

Angebot einholen Katalog herunterladen

Technical Information of EPW End-of-line Pressure Switches


Technical data

Function principle

Electronic pressure switch with

Operating temperature

–25 ℃ to +85 ℃

Operating pressure

0–600 bar

Supply voltage

18–36 VDC

Accurate measurement

0.5%FS (default), 0.2%FS, 0.1%FS

Range

-100kpa~0~100mpa（Optional within the range）

Lubrication systemsdual line lubrication systems

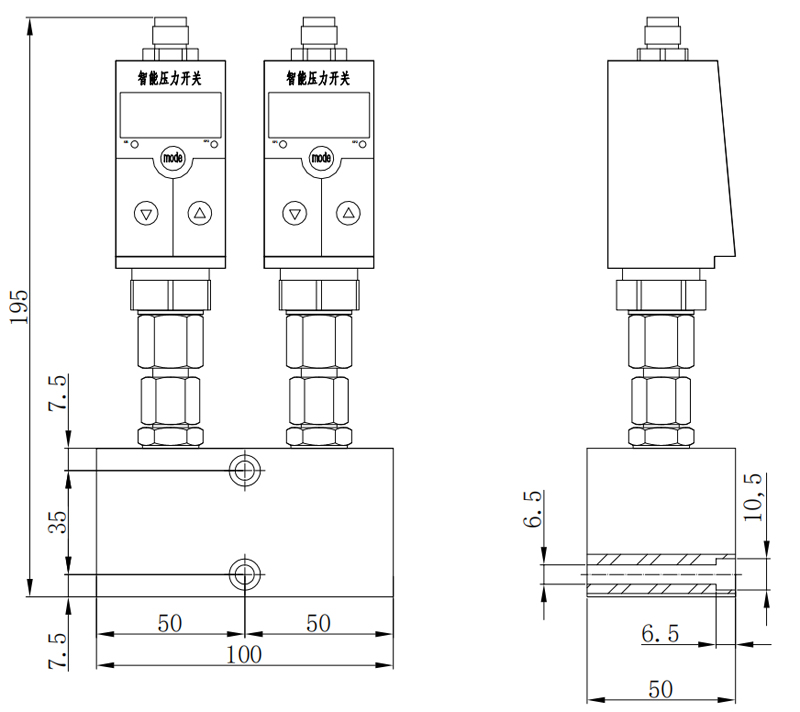

Technical Drawing of EPW End-of-line Pressure Switches


Technical Drawing of EPW End-of-line Pressure Switches

Dimensions (mm)

Characteristics of EPW End-of-line Pressure Switches


  • Controls proper functioning of the pump and change-over unit

  • Monitors for leaks in the tube line system

  • Available with limit switches or with electronic pressure switches with LED display

  • Proven, rigid design for tough conditions
